광산 ICT 기반 위치 생산 작업관리 및 미소진동 안전진단 모니터링 솔루션

ICT-Based Solution for Mine Safety Monitoring, Work Management, and Micro-Vibration Analysis

위치추적을 통한 실시간 장비 이동 Tracking 및 작업관리를 위한 시스템 구축, 실시간 현장 원격영상 제어(CCTV) 및 지능형 접근 경보 시스템 구축 및 실시간 송석 생산정보(량) 카운팅 및 Web 기반 생산, 송석 품위관리 프로그램 을 통해 광산 안전진단 모니터링에 최적화된 솔루션을 제공

We offer a solution optimized for mine safety diagnosis monitoring by integrating a system for real-time equipment tracking and work management, a remote CCTV and intelligent access alert system, and a web-based program for real-time Industrial Stone counting and quality management.

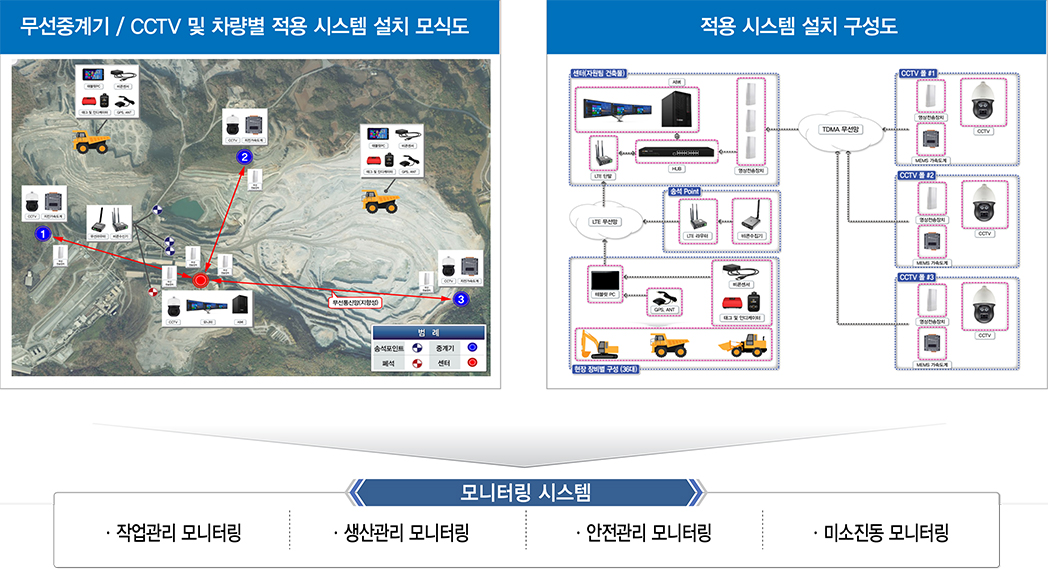

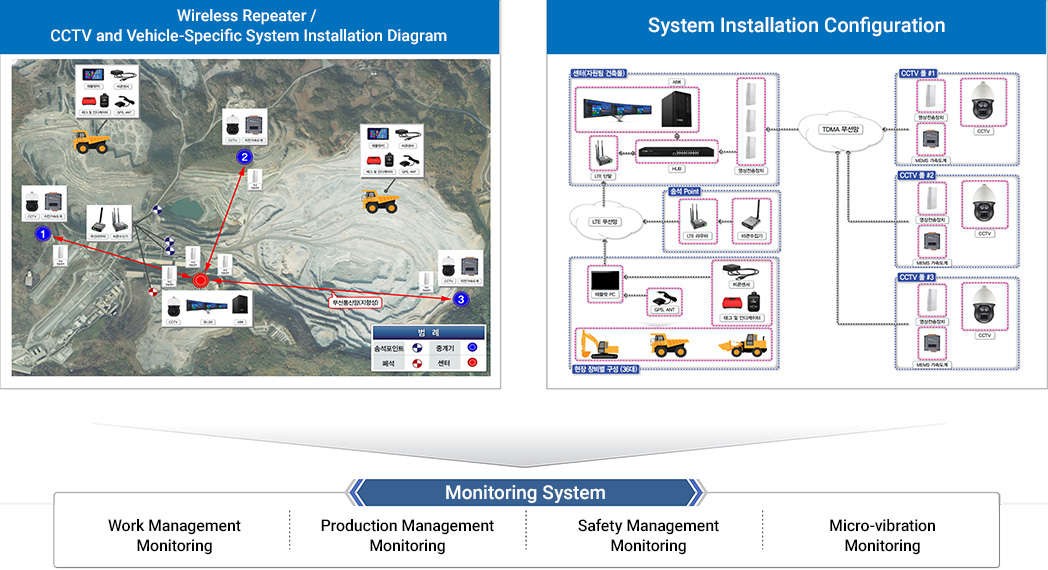

노천광산 관제 Open-Pit Mine Control
  • 위치추적 및 작업안전관리 모니터링 Location Tracking & Work Safety Management Monitoring
  • 서버, 모니터, 네트워크 장비 Server, monitor, network equipment
송석포인트 Industrial Stone Point
  • 송석품위별 생산관리 프로그램 Production Management Program by Industrial Stone Quality
  • 비콘 수집기, LTE 라우터, 무선중계기 Beacon collector, LTE router, wireless repeater
작업차량 Work Vehicles
  • 작업·생산·안전관리 모니터링 Work, Production, & Safety Management Monitoring
  • 작업차량 별 GPS, 태블릿 PC 적용 GPS and tablet PCs for each work vehicle
CCTV CCTV
  • 태양광 자가발전 전력시스템 구축 Solar Self-Powered System
  • CCTV, 이동식 태양광 패널 CCTV, mobile solar panels
MEMS 가속도계 Micro-vibration Sensor
  • 지진가속도센서 (3축) Smart Sensor for Micro-vibration Measurement
  • 발파진동 측정 및 지진 사전 감지 Measures blast vibration

운영 소프트웨어 Operating Software

노천광산 Open-Pit Mine

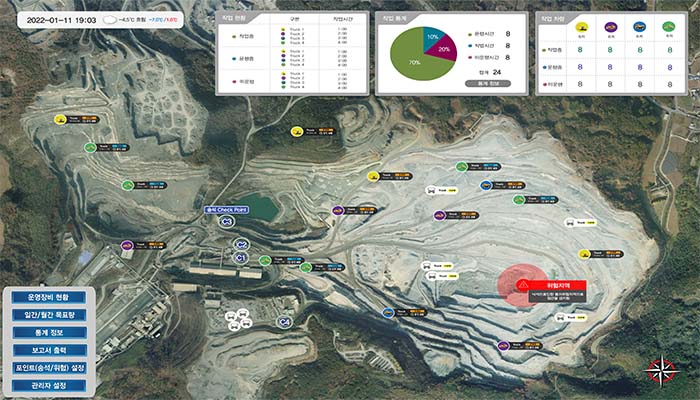

(노천광산) 위치추적 및 작업안전관리 모니터링 (Open-Pit Mine) Location Tracking & Work Safety Management Monitoring
  • 실시간 운영 장비 현황 파악 및 작업현황 파악 Understand real-time status of operational equipment and work progress
  • 일간/월간 목표관리 및 실시간 생산정보 관리 Manage daily/monthly goals and real-time production information
  • 세부적인 생산 통계정보 (초/분 단위) View detailed production statistics (down to the second/minute)
  • 채광위치별 송석실적 관리 (운반거리 별 생산실적) Manage ore transfer performance by mining location (production performance by haul distance)
  • 위험구간 설정 및 관리 Set and manage hazardous zones
  • 안전작업관리 정보 표출(경보) Display safety work management information (alarms)

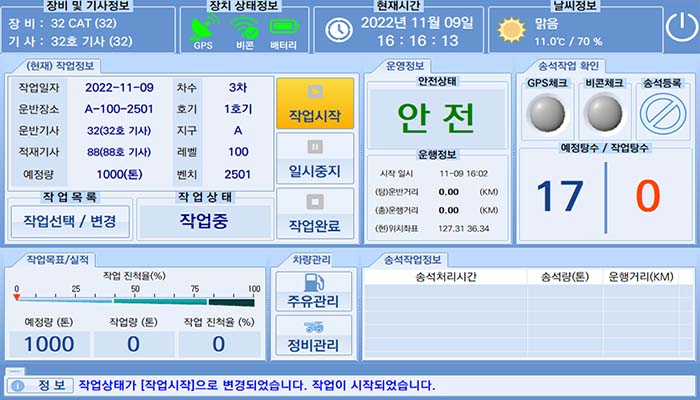

(노천광산) 작업·생산·안전관리 모니터링 (Open-Pit Mine) Work, Production, and Safety Management Monitoring
  • 실시간 생산, 송석품위 관리 기반 Real-time production and ore quality management base
  • 장비별 접속코드 부여를 통한 관리 Management through the assignment of connection codes for each piece of equipment
  • 작업구역, 작업시간 활성화 Activation of work zones and work times
  • 장비별 운영정보 (운반거리에 따른 생산실적 관리) Equipment-specific operational information (management of production based on haul distance)
  • 일별/월별 생산실적 통계 및 작업량 산출 Calculation of daily/monthly production statistics and workload
  • 생산품위, 작업지시서 관리/조회 Management/viewing of production quality and work orders
갱내광산 Underground Mine

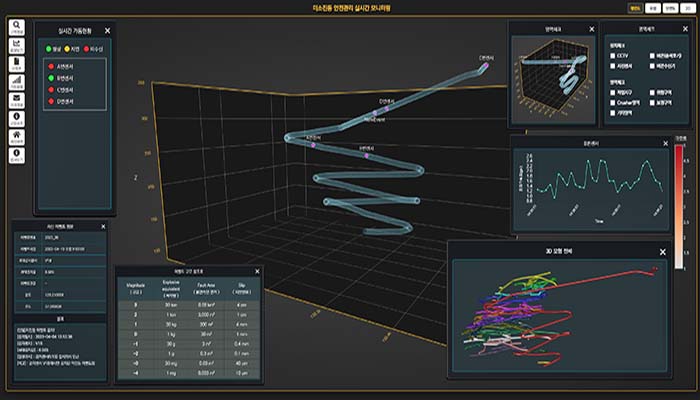

(갱내광산) 미소진동 안전관리 실시간 모니터링 (Underground Mine) Micro-vibration Safety Management Real-time Monitoring
  • 미소진동 감지를 통한 광산 붕괴 조짐 사전 감지 Pre-detection of signs of mine collapse through micro-vibration sensing
  • 발파진동 측정 및 미소진동 모니터링 Measurement of blast vibration and micro-vibration monitoring
  • 발파진동에 대한 변위진폭 실시간 데이터 표출 및 저장 Real-time display and storage of displacement amplitude data for blast vibration
  • 발파, 지진 등으로 유발된 갱내 크랙 등 작은 붕락 등을 감지하여 갱내의 취약지역을 그룹핑 할 수 있으며, 이를 토대로 안전대응 가능 Detection of small collapses like cracks caused by blasting or earthquakes, allowing for the grouping of vulnerable areas within the mine and enabling a safety response
  • 접점출력 신호를 이용한 대상기기 제어가능 Control of target devices using contact output signals

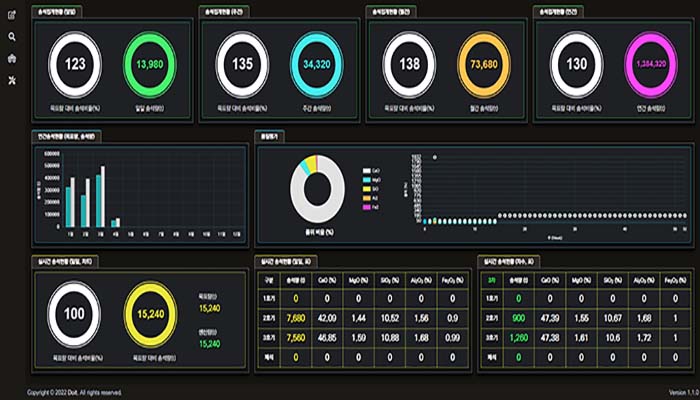

(갱내광산) 송석품위별 생산관리 프로그램 (Underground Mine) Production Management Program by Ore Quality
  • 실시간 송석량 및 품위정보 관리 및 자료 관리 Manage and store real-time ore quantity and quality information
  • 세부적인 생산 통계정보 (초/분 단위) View detailed production statistics (down to the second/minute)
  • 재고현황, 작업지시, 작업계획 관리 Manage inventory status, work orders, and work plans
  • 채광일지, 차량운행일지 취합 출력 Compile and print mining logs and vehicle operation logs
  • 공정별 및 장비별 분석 데이터 제공 Provide analytical data by process and by equipment
  • GUI 개선을 통한 가독성·편의성 제공 Improve readability and convenience through GUI enhancements
